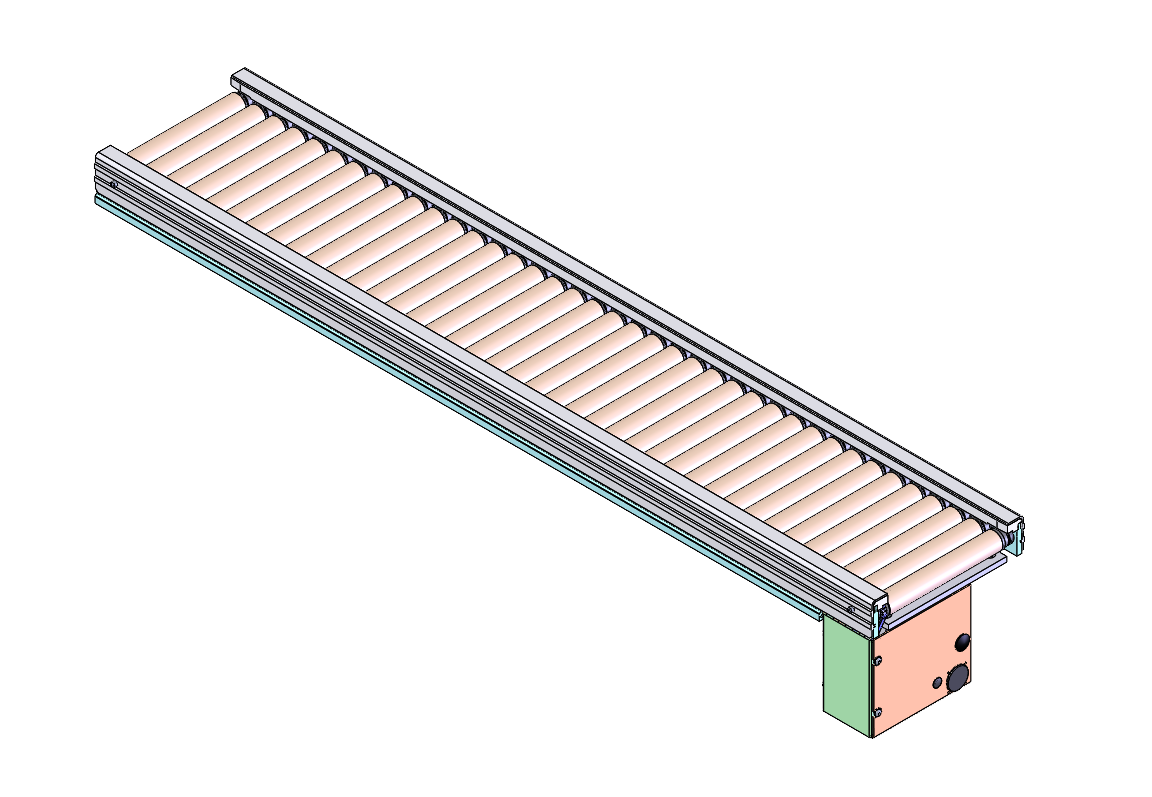

LR Series Conveyors

LR Series Conveyors

Category: Conveyors

Designed to accept variable product sizes and random orientation of products, the LR Series features full width slip-rollers designed for accumulation, and precise product movement. These clean, quiet, and compact conveyors come in a variety of widths and offer low back pressure accumulation eliminating issues such as shingling, jamming, and other varied product damage. These conveyors use a compact 24VDC brushless motor to drive each section that are both safe and easily integrated with existing control packages.

  • Specifications
  • Applications
  • Manuals
  • Downloads
  • Accessories

Specifications

  • Lengths: 6 in, 9 in, 11 in, 15 in, 17 in, 22 in, 30 in, 35 in, 39 in, 48 in, 60 in
  • Widths: 2.25 in – 18 in (by increments of 0.001 in)
  • Loads: 25lbs static, 40 lbs dynamic
  • Speeds: Variable up to 60 fpm
  • Power Requirements: 24VDC @ 1 amp
  • Options:

Applications

  • Delicate Package Accumulation
  • Variable Product Size Conveyance
  • Low Back Pressure Accumulation

Manuals

  • Catalog
  • MR Conveyor Maintenance Guide

Downloads

Accessories

  • Elevator

    Elevator

    View Details
  • Shuttle

    Shuttle

    View Details
  • Framing/Leg Sets

    Framing/Leg Sets

    View Details
  • Lift and Transfer

    Lift and Transfer

    View Details
  • Lift Gate

    Lift Gate

    View Details
  • Corner Rotate

    Corner Rotate

    View Details

View all accessories
